Proctor Testing in Colorado Springs: Standard & Modified...

You can't treat the sandy gravels in the Briargate area the same way you'd handle the clayey soils near the Broadmoor neighborhood. The difference in compaction behavior is night and day. A fill that's over-optimized for moisture in one part of Colorado Springs can fail density spec in another part of town just three miles away. That's why a proper Proctor test isn't just a routine lab check—it's the reference curve that the field density crew lives by. For the decomposed Pikes Peak granite we see across much of the Front Range, we typically run the Modified Proctor per ASTM D1557, but the Standard Proctor (ASTM D698) still has its place on low-energy compaction jobs. Before field testing starts, we often pair this with a sand cone density check so the lab curve and the field number are speaking the same language.

A Proctor curve without the zero-air-voids line is like a map with no north arrow—you can't trust the peak until you see the saturation boundary.

Technical details of the service in Colorado Springs

A couple of years back we had a multi-family project off Powers Boulevard where the structural fill spec called for 95% of Modified Proctor max, but the contractor was struggling to hit it with the moisture they had on site. Turns out the borrow material had a significant fraction of friable sandstone that just kept breaking down under the 56,000 ft-lbf/ft³ Modified effort, so the lab curve was a moving target. We ended up running a one-point Proctor correlation for daily rapid checks and a full five-point curve every 5,000 cubic yards as a reference. The lab procedure itself is methodical: we compact material in a 4-inch mold (or 6-inch for Method C with oversize correction) at four to five moisture contents, plot the dry density versus molding moisture, and read the peak off the curve. For Colorado Springs DOT projects, the spec usually references AASHTO T-180 for Modified and T-99 for Standard, and our reports include the zero-air-voids curve so the engineer can spot an outlier data point immediately. When the soil has more than 15% retained on the No. 4 sieve, we apply the oversize correction per ASTM D4718—skipping that step can overestimate field density by a couple of points, and on a CDOT job that's the difference between pass and fail. In deeper fill areas near Fountain Creek, we also recommend a grain size analysis on the same sample to flag any gap-graded material that might not compact uniformly.

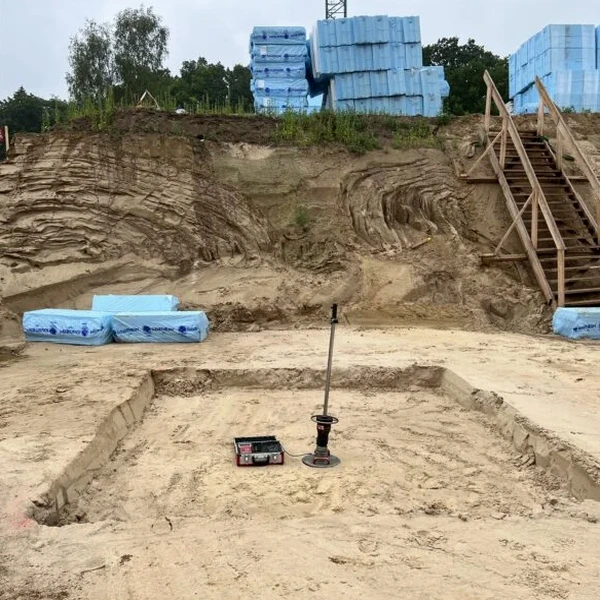

Proctor Testing in Colorado Springs: Standard & Modified Compaction Control

Parameter	Typical value
Test standards	ASTM D698 (Standard), ASTM D1557 (Modified), AASHTO T-99, AASHTO T-180
Compactive effort (Modified)	56,000 ft-lbf/ft³ (2,700 kN-m/m³)
Compactive effort (Standard)	12,400 ft-lbf/ft³ (600 kN-m/m³)
Mold sizes	4-inch diameter (Methods A/B), 6-inch diameter (Method C)
Moisture contents per curve	4 to 5 points, typically spanning 2% below to 2% above optimum
Oversize correction	ASTM D4718 for +No. 4 retained ≥ 15%
Typical optimum moisture range (CS soils)	8%–16% for clayey sands; 4%–9% for gravelly decomposed granite
Report turnaround	24–48 hours for full curve; same-day for one-point rapid check

Risks and considerations in Colorado Springs

At 6,035 feet above sea level, Colorado Springs sees freeze-thaw cycles that punish poorly compacted subgrade more aggressively than most engineers from lower elevations expect. The average winter here cycles above and below freezing over 100 times, and each cycle is a miniature heave-and-thaw event that exploits low-density pockets in fill. A Proctor test that's run with the wrong compactive effort—say, Standard when the spec requires Modified—can give you an optimum moisture that's 2 to 4 points higher than what the field crew actually needs, and suddenly your 95% relative compaction target is unachievable without over-wetting the lift. The other risk we see regularly is running the curve on material that's been air-drying on a lab bench for three days while the field crew is placing it at natural moisture. Colorado Springs soils, especially the sandy clays derived from the Dawson and Denver formations, can change optimum moisture by 1.5% just from oven-drying and re-wetting. We prefer to start the Proctor within 24 hours of sampling whenever the spec allows it.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.sbs

Applicable standards: ASTM D698-12(2021), ASTM D1557-12(2021), ASTM D4718-15, AASHTO T-99, AASHTO T-180

Our services

Our Proctor testing fits into a broader quality-control workflow. These are the companion services that Colorado Springs contractors and geotechnical engineers typically request alongside compaction curves.

Modified Proctor (ASTM D1557)

Full five-point compaction curve using the 10-lb hammer and 18-inch drop. Standard for structural fill, pavement subgrade, and any spec calling for 95% Modified density across El Paso County.

Standard Proctor (ASTM D698)

Lower-energy curve with the 5.5-lb hammer and 12-inch drop. Used for landscape fills, low-height embankments, and utility trench backfill where over-compaction isn't required.

One-Point Proctor / Rapid Check

Single-point moisture-density determination correlated to a previously established family of curves. Ideal for daily QC when the borrow source hasn't changed and you need a same-day pass/fail on moisture conditioning.

Frequently asked questions

How much does a Proctor test cost in Colorado Springs?

Which Proctor method should I specify—Standard or Modified?

In Colorado Springs, most structural fill and pavement specs call for Modified Proctor (ASTM D1557) at 95% relative compaction. Standard Proctor (ASTM D698) is reserved for lower-energy applications like landscape berms, shallow utility bedding, or non-structural fills. Check your geotechnical report—the spec section will name the method and the minimum relative compaction percentage.

What sample size do you need for a Proctor test?

For a 4-inch mold (Methods A and B), we need about 35–40 lb of material. For the 6-inch mold (Method C, used when there's oversize gravel), we need 65–75 lb. The sample should be bagged and sealed immediately after excavation to preserve natural moisture, and delivered to the lab within 24 hours when possible.

How long does it take to get Proctor results back?

A full five-point Proctor curve with the zero-air-voids plot and oversize correction takes 24 to 48 hours from sample receipt. One-point rapid checks on a known material source can be turned around same-day if we receive the sample by mid-morning. We can email the curve as a PDF the moment the lab run is complete.

What is the oversize correction and when do I need it?

When more than 15% of the soil sample is retained on the No. 4 sieve, ASTM D4718 requires an oversize correction. The lab tests the minus-No. 4 fraction separately, measures the bulk specific gravity of the oversize gravel, and mathematically corrects the curve. Without this adjustment, the lab overestimates the maximum dry density of the total material, which can lead to a false pass in the field. It's standard on Colorado Springs projects where decomposed granite is the fill source.
